DC Low resistance Series

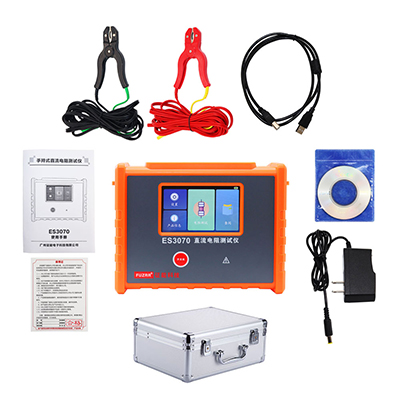

Handheld DC resistance tester (10A)
ES3070
Function: Mainly used to measure transformer DC resistance, transformer winding resistance, ground network connection continuity, cable wire resistance, etc.
Resistance range: 10.0uΩ-50.00KΩ
Resistance resolution: 0.1 uΩ
Test current: 10A, 5A, 1A, 0.1A, 10mA, 1mA
Accuracy: 0.2%
USB interface: with USB interface
Touch screen operation: Yes
Charging function: Yes

ES3070 Handheld DC resistance tester (10A) ES3070 Handheld DC resistance tester (10A)
ES3070 Handheld DC resistance tester (10A) ES3070 Handheld DC resistance tester (10A)
ES3070 Handheld DC resistance tester (10A) ES3070 Handheld DC resistance tester (10A)
ES3070 Handheld DC resistance tester (10A) ES3070 Handheld DC resistance tester (10A)
ES3070 Handheld DC resistance tester (10A) ES3070 Handheld DC resistance tester (10A)
Function Is mainly used for measurement of transformer dc resistance, transformer winding resistance, network connectivity, cable conductor resistance, contact resistance of switches, connectors, relays, winding, motor, transformer winding resistance and metal riveting resistance, metal component coupling between resistance test, low resistance testing, contact resistance testing, etc.
Resistance range 10.0uΩ-50.00KΩ
Resolution ratio 0.1 uΩ
Precision ±0.2%FS±10dgt
Detection method The four-wire test
Measuring current 10A、5A、1A、0.1A、10mA、1mA
Maximum short circuit current  10A
overload protection Yes
Self discharge Yes
Power DC12.6v 2500mAh large-capacity lithium battery
Charging function Yes
Back light Yes, suitable for dark places
Display mode LCD Full-color display
Overflow shows The "OL" symbol is displayed when the overrange overflow occurs
Touch screen operation Yes
The LCD size Length and width: 108mm×65mm
Size of instrument Length, width and height: 240mm×188mm×85mm
The test line length 5 meters, 1 red, 1 black
USB interface With USB interface
Line of communication 1 USB communication cable
Data storage 500 groups
View Data Data access function
Cell voltage The battery power is displayed in real time, indicating that the battery should be charged in time when the battery voltage is low
Auto power-off Turn off the meter after no operation for about 15 minutes
Power dissipation Standby: approx. 116mA (20% brightness)
Measurement: 27W Max
Weight Instrument: 1100g(including batteries)
Test line: 850g
Operating temperature and humidity - 10℃~40℃,Below 70%rh
Storage temperature and humidity -20℃~60℃,Below 70%rh
Insulation resistance More than 10 m Ω (circuit between the shell and 500 V)
Withstand voltage AC 3700V/ RMS (between circuit and housing)
Electromagnetic property IEC61010-4-3, wireless frequency electromagnetic field ≤1V/m
Suitable for safety IEC61010-1、CAT Ⅲ 600V、Pollution level 2、JJG724-1991 <<VERIFICATION Regulation of DC Digital Ohmmeter>>, JJG166-1993 <<Verification Regulation of DC Resistor>>, <<VERIFICATION Regulation of DL/T967-2005 Circuit Resistance Tester and DC Resistance Rapid Tester>>
